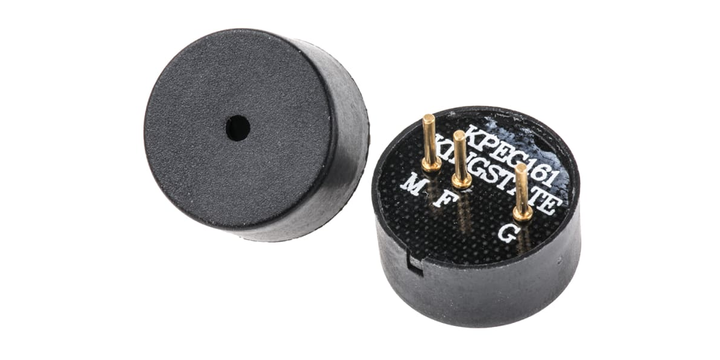

Rs Pro 5358146 70dB Through Hole Continuous Internal Piezo Buzzer, 13.8 (dia.) X 7mm, 3V Dc Min, 16V Dc Max
Technical Data Sheets
Specifications
Please select at least one specification below.
Mounting Type
Through Hole
Height
7 mm
Dimensions
13.8 (Dia.) x 7 mm
Diameter
13.8 mm
Drive Type
Internal
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+85°C
Minimum Supply Voltage
3V dc
Maximum Supply Voltage
16V dc
Sound Level
70 dB
Tone Type
Continuous
Maximum Frequency
4.6 kHz
Supply Current
7 mA
Minimum Frequency
3600 Hz
Product Description
AU $ 21.99
Quantity:
EA
MOQ of 5 EA
Bundle of 5 EA
This item is sold by
SG-4570630354
