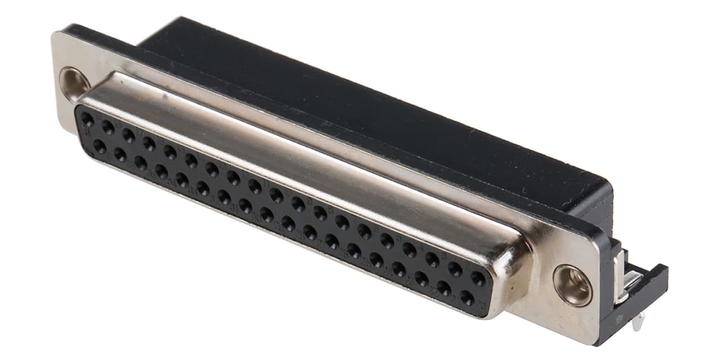

Rs Pro 2395928 37 Way Right Angle Through Hole D-sub Connector Socket, 2.77mm Pitch, With 4-40 Unc, Threaded Insert
Rs Pro 2395928 37 Way Right Angle Through Hole D-sub Connector Socket, 2.77mm Pitch, With 4-40 Unc, Threaded Insert
Brand:
RS Pro
Model:
2395928
Technical Data Sheets
Specifications
infotip-icon
View other D Sub Connectors dimensions or variations
Please select at least one specification below.
Length
69.32 mm
Pitch
2.77 mm
Current Rating
5.0 A
Mounting Type
Through Hole
Depth
12.5 mm
Voltage Rating
350 V ac/dc
Dimensions
69.32 x 18.4 x 12.5 mm
Gender
Female
Termination Method
Solder
Body Orientation
Right Angle
Contact Plating
Gold
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+105°C
Number of Contacts
37
Housing Material
PET
Contact Material
Phosphor Bronze
Mounting Hardware
4-40 UNC, Threaded Insert
