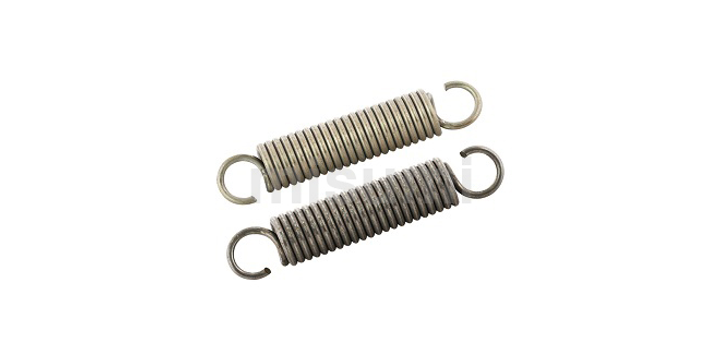

Misumi C-AWY4-30 Tension Springs Ultra Light Load / Light Load O.D.3-8
Misumi C-AWY4-30 Tension Springs Ultra Light Load / Light Load O.D.3-8
Brand:
MISUMI
Model:
C-AWY4-30
Specifications
infotip-icon
View other Springs dimensions or variations
Please select at least one specification below.
Material
SWP-A
Outer Diameter
4
mm
Allowable Load (Configurable Range)
1.26~3.50 N
Max. Load
3.24 N
Wire Diameter
0.4
mm
Free Length
30
mm
Length of Spring Used L+F
58.4
mm
Initial Tension
0.59 N
Standard Spring Constant
0.09 N/mm
Max. Deflection
28.4 mm
Hook Opposing Angle
180° (Standard)
