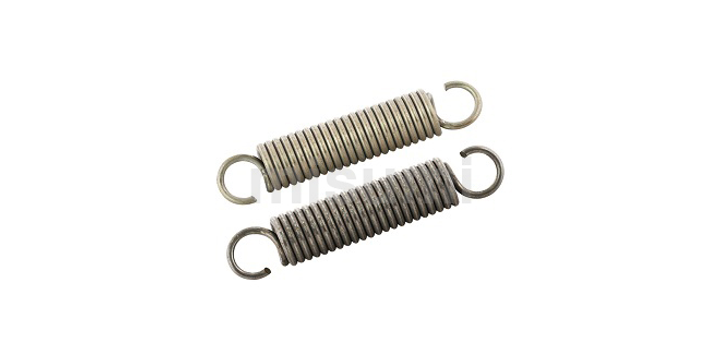

Misumi C-AWT4-20 Tension Springs Heavy Load O.D.3-10
Misumi C-AWT4-20 Tension Springs Heavy Load O.D.3-10
Brand:
MISUMI
Model:
C-AWT4-20
Specifications
infotip-icon
View other Springs dimensions or variations
Please select at least one specification below.
Material
SWP-A
Outer Diameter
4
mm
Allowable Load (Configurable Range)
8.01~15.00 N
Max. Load
11.1 N
Wire Diameter
0.6
mm
Free Length
20
mm
Length of Spring Used L+F
26.4
mm
Initial Tension
2.55 N
Standard Spring Constant
1.37 N/mm
Max. Deflection
6.4 mm
Hook Opposing Angle
180° (Standard)
