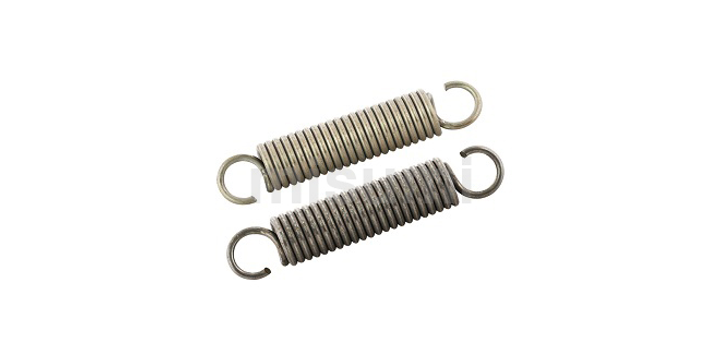

Misumi C-AWS4-20 Tension Springs Medium Light / Medium Load O.D.3-10
Specifications
Please select at least one specification below.
Material
SWP-A
Outer Diameter
4
mm
Allowable Load (Configurable Range)
3.51~8.00 N
Max. Load
6.37 N
Wire Diameter
0.5
mm
Free Length
20
mm
Length of Spring Used L+F
30.2
mm
Initial Tension
1.18 N
Standard Spring Constant
0.49 N/mm
Max. Deflection
10.2 mm
Hook Opposing Angle
180° (Standard)
Product Description
AU $ 0.46
Quantity:
EA
Stock:
93 EA in stock
In Seller's Warehouse
