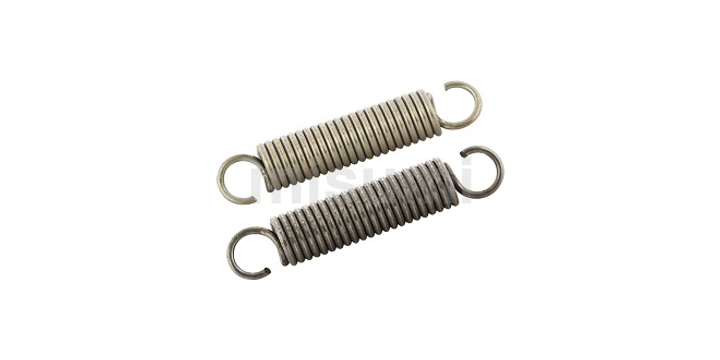

Misumi C-AWF5-20 Tension Springs Medium Light / Medium Load O.D.3-10
Misumi C-AWF5-20 Tension Springs Medium Light / Medium Load O.D.3-10
Brand:
MISUMI
Model:
C-AWF5-20
Specifications
infotip-icon
View other Springs dimensions or variations
Please select at least one specification below.
Material
SWP-A
Outer Diameter
5
mm
Allowable Load (Configurable Range)
8.01~15.00 N
Max. Load
14.71 N
Wire Diameter
0.7
mm
Free Length
20
mm
Length of Spring Used L+F
26.9
mm
Initial Tension
2.45 N
Standard Spring Constant
1.77 N/mm
Max. Deflection
6.9 mm
Hook Opposing Angle
180° (Standard)
